前回、Wio TerminalにGPSをつないで、とりあえず、緯度、経度、高度を表示しました。
それをいじくってるうちに、もう少し、いろんな機能を試してみたくなってきました。
まず、日付を表示できるようにして、ログをとれるようにし、ポイントをマークできるようにしました。(1か所だけですが…)

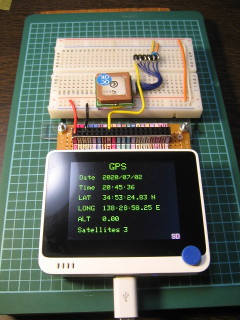

ログをとるためには、まず、SDカードが入っていないとだめなので、スイッチを入れた時点でSDカードが入っていないと画面の右下隅に[SD]と表示するようにしました。
そして、WioのAボタン(右端)を押すと、画面右上に、[L] と表示されロギングが始まります。
データは、日付、時間、緯度、経度、高度がカンマ区切りでテキストファイルで保存されます。
また、Bボタン(真ん中)を押すと、画面右上に、[M] と表示され、現在地がメモリに記憶されて、そこまでの距離と方角が2ページ目に表示されるようになっています。
Cボタン(左端)を押すとページが切り替わって、2ページ目が表示されます。
2ページ目は、現在の移動のスピードと方位、設定されている記録ポイントの緯度、経度、記録ポイントまでの距離と方角が表示されます。
さらに、Cボタンを押すと、3ページ目が表示されます。
3ページ目は、GPS衛星の位置を表示します。
とりあえず、いまのところは、ここまで。
まだ、いろいろと追加したい機能があるのだけど、それは、おいおい追加していこうかと思っています。
追加追加でつぎはき拡張していったので、プログラムは、めちゃめちゃ、ぐっちゃぐっちゃしてますが、一応、以下のようになってます。
#include <SoftwareSerial.h> #include <TinyGPS++.h> #include "TFT_eSPI.h" #include <SPI.h> #include <Seeed_FS.h> #include "SD/Seeed_SD.h" SoftwareSerial mySerial(2, 3); // RX, TX TinyGPSPlus gps; TFT_eSPI tft; TinyGPSCustom ExtLat(gps, "GPGGA", 3); //N for Latitude TinyGPSCustom ExtLng(gps, "GPGGA", 5); //E for Longitude const float pi = 3.1415; int menu = 0, p_menu = 3; int logging = 0, sat_n = 0; double dist_LAT = 34.9722899, dist_LONG = 138.3868869; String p_hour, p_lat, p_lng, p_alt, p_sat, p_date; String p_my_speed, p_my_course, p_dist_dTo, p_dist_cTo; String pdist_LAT, pdist_LONG; String sdist_LAT = String(dist_LAT); String sdist_LONG = String(dist_LONG); //for Satellites position **************************** static const int MAX_SATELLITES = 40; TinyGPSCustom totalGPGSVMessages(gps, "GPGSV", 1); // $GPGSV sentence, first element TinyGPSCustom messageNumber(gps, "GPGSV", 2); // $GPGSV sentence, second element TinyGPSCustom satsInView(gps, "GPGSV", 3); // $GPGSV sentence, third element TinyGPSCustom satNumber[4]; // to be initialized later TinyGPSCustom elevation[4]; TinyGPSCustom azimuth[4]; TinyGPSCustom snr[4]; struct { bool active; int elevation; int azimuth; int snr; int dsp; } sats[MAX_SATELLITES]; int Log_f = 0; String N_date, hour0; unsigned long p_time; int N_y, N_m, N_d; String hr1, min1, sec1; String F_name; bool sd; // ************************ void disp_title(){ if (menu == 0) { tft.fillScreen(TFT_BLACK); tft.setTextSize(3); tft.drawString("GPS",120,3); tft.setTextSize(2); tft.drawString("Date",30,42); tft.drawString("Time",30,74); tft.drawString("LAT",30,106); tft.drawString("LONG",30,138); tft.drawString("ALT",30,170); tft.drawString("Satellites",30,202); if(sd != true) { tft.drawChar(295,223,'S',TFT_WHITE, TFT_RED,2); tft.drawChar(307,223,'D',TFT_WHITE, TFT_RED,2); } p_hour = " "; p_lat = " "; p_lng = " "; p_alt = " "; p_sat = " "; p_date = " "; if(Log_f == 1) tft.drawChar(295,3,'L',TFT_YELLOW, TFT_BLACK,2); } else if(menu == 1) { tft.fillScreen(TFT_BLACK); tft.setTextSize(3); tft.drawString("GPS",120,3); tft.setTextSize(2); tft.drawString("Speed",30,64); tft.drawString("Course",30,88); tft.drawString("Destination",30,112); tft.drawString("LAT",40,136); tft.drawString("LONG",40,160); tft.drawString("Distance",40,184); tft.drawString("Course",40,208); tft.fillRect(130,136,120,16,TFT_BLACK); tft.drawString(sdist_LAT,130,136); tft.fillRect(130,160,120,16,TFT_BLACK); tft.drawString(sdist_LONG,130,160); if(sd != true) { tft.drawChar(295,223,'S',TFT_WHITE, TFT_RED,2); tft.drawChar(307,223,'D',TFT_WHITE, TFT_RED,2); } p_my_speed = " "; p_my_course = " "; p_dist_dTo = " "; p_dist_cTo = " "; if(Log_f == 1) tft.drawChar(295,3,'L',TFT_YELLOW, TFT_BLACK,2); } else if(menu == 2) { tft.fillScreen(TFT_BLACK); tft.setTextSize(2); tft.drawCircle(160,120,120,TFT_WHITE); tft.drawCircle(160,120,80,TFT_WHITE); tft.drawCircle(160,120,60,TFT_WHITE); tft.drawCircle(160,120,40,TFT_WHITE); tft.drawLine(160,1,160,239,TFT_WHITE); tft.drawLine(40,120,280,120,TFT_WHITE); tft.fillCircle(160,120,3,TFT_RED); tft.drawChar(153,0,'N',TFT_ORANGE, TFT_BLACK,3); tft.drawChar(153,219,'S',TFT_ORANGE, TFT_BLACK,3); tft.drawChar(24,111,'W',TFT_ORANGE, TFT_BLACK,3); tft.drawChar(280,111,'E',TFT_ORANGE, TFT_BLACK,3); if(sd != true) { tft.drawChar(295,223,'S',TFT_WHITE, TFT_RED,2); tft.drawChar(307,223,'D',TFT_WHITE, TFT_RED,2); } for (int i=0; i<MAX_SATELLITES; ++i) sats[i-1].dsp = 0; if(Log_f == 1) tft.drawChar(295,3,'L',TFT_YELLOW, TFT_BLACK,2); } } // =================================================================== void setup() { // Open serial communications and wait for port to open: Serial.begin(57600); mySerial.begin(9600); pinMode(WIO_KEY_A, INPUT_PULLUP); pinMode(WIO_KEY_B, INPUT_PULLUP); pinMode(WIO_KEY_C, INPUT_PULLUP); Serial.print("Initializing SD card..."); if (!SD.begin(SDCARD_SS_PIN, SDCARD_SPI)) { Serial.println("initialization failed!"); //while (1); sd = false; tft.drawChar(295,223,'S',TFT_WHITE, TFT_RED,2); tft.drawChar(307,223,'D',TFT_WHITE, TFT_RED,2); } else { Serial.println("initialization done."); sd = true; } tft.begin(); tft.setRotation(3); tft.fillScreen(TFT_BLACK); //Black background tft.setTextColor(TFT_YELLOW); //for satellites position // Initialize all the uninitialized TinyGPSCustom objects for (int i=0; i<4; ++i) { satNumber[i].begin(gps, "GPGSV", 4 + 4 * i); // offsets 4, 8, 12, 16 elevation[i].begin(gps, "GPGSV", 5 + 4 * i); // offsets 5, 9, 13, 17 azimuth[i].begin( gps, "GPGSV", 6 + 4 * i); // offsets 6, 10, 14, 18 snr[i].begin( gps, "GPGSV", 7 + 4 * i); // offsets 7, 11, 15, 19 } } // ============================================================================ void loop() { long N_mjd; while (mySerial.available() > 0) { char c = mySerial.read(); //Serial.print(c); gps.encode(c); } if (((millis()-p_time) >3000) and (Log_f ==1)) { File myFile = SD.open(F_name,FILE_APPEND); if(myFile) { myFile.print(N_date); Serial.print(N_date); myFile.print(","); Serial.print(" , "); myFile.print(hour0); Serial.print(hour0); myFile.print(","); Serial.print(" , "); myFile.print(gps.location.lat(),6); Serial.print(gps.location.lat(),6); myFile.print(","); Serial.print(" , "); myFile.print(gps.location.lng(),6); Serial.print(gps.location.lng(),6); myFile.print(","); Serial.print(" , "); myFile.println(gps.altitude.meters()); Serial.println(gps.altitude.meters()); myFile.close(); } p_time = millis(); } double lat0 = gps.location.lat(); double lat1 = (lat0 -int(lat0))*60; double lat2 = (lat1 - int(lat1))*60; String lat3 = String(int(lat0))+':' + String(int(lat1))+':'+String(lat2) + ' ' + String(ExtLat.value()); double lng0 = gps.location.lng(); double lng1 = (lng0 -int(lng0))*60; double lng2 = (lng1 - int(lng1))*60; String lng3 = String(int(lng0))+':' + String(int(lng1))+':'+String(lng2) + ' ' + String(ExtLng.value()); int hr = gps.time.hour()+9; if (hr>24) hr -= 24; String hr0 = '0'+String(hr); hr1 = hr0.substring(hr0.length()-2); String min0 = '0'+String(gps.time.minute()); min1 = min0.substring(min0.length()-2); String sec0 = '0'+String(gps.time.second()); sec1 = sec0.substring(sec0.length()-2); hour0 = hr1+':'+min1+':'+sec1; //Calculate date if (gps.date.isUpdated()) { int y = gps.date.year(); int m = gps.date.month(); int d = gps.date.day(); if(m<3){y--; m+=12;} long mjd = int(365.25*y)+int(y/400)-int(y/100)+int(30.59*(m-2))+d-678912; if(gps.time.hour()>14) N_mjd = 58580+(mjd-51412); else N_mjd = 58579+(mjd-51412); long n = N_mjd+678881; long a = 4*n+3+3*(4*(n+1)/146097+1); long b = 5*((a % 1461)/4)+2; N_y = int(a/1461); N_m = int(b/153+3); N_d = int((b % 153)/5+1); if (N_m>12){N_y++; N_m-=12;} N_date = String(N_y)+'/'+('0'+String(N_m)).substring(('0'+String(N_m)).length()-2)+'/'+('0'+String(N_d)).substring(('0'+String(N_d)).length()-2); } if(menu == 0) { //menu 0: Location ----------------------------- if(menu != p_menu) { disp_title(); p_menu = menu; } if (N_date != p_date) { //Date tft.fillRect(100,42,120,16,TFT_BLACK); tft.drawString(N_date,100,42); p_date = N_date; } if (hour0 != p_hour) { //Time tft.fillRect(100,74,120,16,TFT_BLACK); tft.drawString(hour0,100,74); p_hour = hour0; } if (lat3 != p_lat) { //Latitude tft.fillRect(100,106,132,16,TFT_BLACK); tft.drawString(lat3,100,106); p_lat = lat3; } if (lng3 != p_lng) { //Longitude tft.fillRect(100,138,156,16,TFT_BLACK); tft.drawString(lng3,100,138); p_lng = lng3; } if (String(gps.altitude.meters()) != p_alt) { //Altimeter tft.fillRect(100,170,60,16,TFT_BLACK); tft.drawString(String(gps.altitude.meters()),100,170); p_alt = String(gps.altitude.meters()); } if (String(gps.satellites.value()) != p_sat) { //N of Satellites tft.fillRect(160,202,32,16,TFT_BLACK); tft.drawString(String(gps.satellites.value()),160,202); p_sat = String(gps.satellites.value()); } } // end of menu=0 else if (menu == 1) { //menu1: Speed --------------------------- if(menu != p_menu) { disp_title(); p_menu = menu; } String my_speed = String(gps.speed.mps()); String my_course = String(gps.course.deg()); double dist_dTo = TinyGPSPlus::distanceBetween( gps.location.lat(), gps.location.lng(), dist_LAT, dist_LONG); double dist_cTo = TinyGPSPlus::courseTo( gps.location.lat(), gps.location.lng(), dist_LAT, dist_LONG); String s_distanceTo = String(dist_dTo); String s_courseTo = String(dist_cTo); //Display Speed & Course if (my_speed != p_my_speed) { //Speed tft.fillRect(130,64,48,16,TFT_BLACK); tft.drawString(my_speed,130,64); p_my_speed = my_speed; } if (my_course != p_my_course) { //Course tft.fillRect(130,88,72,16,TFT_BLACK); tft.drawString(my_course,130,88); p_my_course = my_course; } if (sdist_LAT != pdist_LAT) { //distination latitude tft.fillRect(130,136,120,16,TFT_BLACK); tft.drawString(sdist_LAT,130,136); pdist_LAT = sdist_LAT; } if (sdist_LONG != pdist_LONG) { //distination longitude tft.fillRect(130,160,120,16,TFT_BLACK); tft.drawString(sdist_LONG,130,160); pdist_LONG = sdist_LONG; } if (s_distanceTo != p_dist_dTo) { //distance to the mark point tft.fillRect(154,184,84,16,TFT_BLACK); tft.drawString(s_distanceTo,154,184); p_dist_dTo = s_distanceTo; } if (s_courseTo != p_dist_cTo) { //Course to the mark point tft.fillRect(154,208,72,16,TFT_BLACK); tft.drawString(s_courseTo,154,208); p_dist_cTo = s_courseTo; } } //end of menu = 1 if (menu == 2) { //menu 2: Satellites --------------------------- if(menu != p_menu) { disp_title(); p_menu = menu; } if (totalGPGSVMessages.isUpdated()) { for (int i=0; i<4; ++i) { int no = atoi(satNumber[i].value()); if (no >= 1 && no <= MAX_SATELLITES) { sats[no-1].elevation = atoi(elevation[i].value()); sats[no-1].azimuth = atoi(azimuth[i].value()); sats[no-1].snr = atoi(snr[i].value()); sats[no-1].active = true; } } int totalMessages = atoi(totalGPGSVMessages.value()); int currentMessage = atoi(messageNumber.value()); if (totalMessages == currentMessage) { for (int i=0; i<MAX_SATELLITES; ++i) { if (sats[i].active) { int p_X = 160 + (120*cos((sats[i].elevation/180.0)*pi)) * (sin((sats[i].azimuth)/360.0*2.0*pi)); int p_Y = 120 - (120*cos((sats[i].elevation/180.0)*pi)) * (cos((sats[i].azimuth)/360.0*2.0*pi)); tft.fillCircle( p_X, p_Y, 5,TFT_BLUE); if (sats[i].dsp == 0) { tft.drawString(String(i+1),p_X+3,p_Y+3); sats[i].dsp = 1; } } } for (int i=0; i<MAX_SATELLITES; ++i) sats[i].active = false; } } } //end of menu = 2 // Button check if (digitalRead(WIO_KEY_C) == LOW) { // Page(menu) change menu++; if(menu > 2) menu = 0; while(digitalRead(WIO_KEY_C) == LOW){} } if (digitalRead(WIO_KEY_A) == LOW) { // Log to SD card if ((Log_f == 0) and (sd == true)) { Log_f = 1; tft.drawChar(295,3,'L',TFT_YELLOW, TFT_BLACK,2); p_time = millis(); if(N_date !="" and hour0 !="") { F_name = String(N_y)+String(N_m)+String(N_d)+"_"+hr1+min1+sec1+".txt"; Serial.println(F_name); } } else if ((Log_f == 1) and (sd == true)){ Log_f = 0; tft.drawChar(295,3,'L',TFT_BLACK, TFT_BLACK,2); Serial.println(F_name+" closed"); } while(digitalRead(WIO_KEY_A) == LOW){} } if (digitalRead(WIO_KEY_B) == LOW) { // Mark current location dist_LAT = gps.location.lat(); dist_LONG = gps.location.lng(); tft.drawChar(308,3,'M',TFT_YELLOW, TFT_BLACK,2); while(digitalRead(WIO_KEY_B) == LOW){} } } // end of loop
