前回、M5Stackで3Dモデルをグリグリしたのに味を占めて、Wio terminal でもやってみました。
M5では、Bluetoothのシリアル接続でIMUのデータをProcessingにアップしていましたけど、今回は、WiFiを通して、TCPのソケット通信で加速度センサーのデータをアップしています。
また、Wio terminalには、ジャイロセンサーは、ついていないので、加速度センサーのみでのグリグリになります。
したがって、Pitch方向とRoll方向には、動かせるけど、Yaw方向は動かせません。
また、ぐるっと180度反転したときに、Z軸の富豪の反転で、180度反転したことはわかるのですが、Pitch方向で反転したのか、Roll方向で反転したのか判別できないように思います。
このあたり、何かやり方があるのかな…?
なんか、手探り状態ですが、一応、グリグリは、できたので、記録代わりに置いておきます。
WioTerminal側のスケッチは、以下
もし、追試される方があるようでしたら、ご自分の環境に合わせて、WiFiのSSIDとPassword を設定してください。 また、サーバーとなるPCのIPアドレスも設定が必要です。Portは、とりあえず、20000にしていますが、これも、必要に応じて好きなポートに設定してくださいね。
お約束ですが、何かあっても責任はとれませんので、あくまでも自己責任で…。
と、いうのも、先日、M5Stackででっかい画像データを転送して、表示させようとしたら、いきなり、TFTが壊れてしまったようで、何も表示されなくなってしまいました。
なにも、ハード的に何か触ったわけでもないので、まさか、そんなことで壊れるわけはないと思っていたのですが、まぁ、そんなことも起こったりするので、念のため、リスクは、ご自分で管理ください。
#include <AtWiFi.h> #include"LIS3DHTR.h" #include "TFT_eSPI.h" #include <math.h> LIS3DHTR<TwoWire> lis; TFT_eSPI tft; const char* ssid = "your SSID"; const char* password = "your password"; void setup() { Serial.begin(115200); //while(!Serial); // Wait for Serial to be ready delay(1000); //Display setup tft.begin(); tft.setRotation(3); tft.setTextColor(TFT_YELLOW); tft.setTextSize(2); tft.fillScreen(TFT_BLACK); //Accerometer setup lis.begin(Wire1); if (!lis) { Serial.println("ERROR"); while(1); } lis.setOutputDataRate(LIS3DHTR_DATARATE_25HZ); //Data output rate lis.setFullScaleRange(LIS3DHTR_RANGE_2G); //Scale range set to 2g // Set WiFi to station mode and disconnect from an AP if it was previously connected WiFi.mode(WIFI_STA); WiFi.disconnect(); delay(2000); WiFi.begin(ssid, password); tft.println("Connecting to WiFi"); while (WiFi.status() != WL_CONNECTED) { delay(500); Serial.println("Connecting to WiFi.."); tft.print("."); } Serial.println("Connected to the WiFi network"); Serial.print("IP Address: "); Serial.println (WiFi.localIP()); // prints out the device's IP address tft.print("\n"); tft.println(WiFi.localIP()); } void loop() { const uint16_t port = 20000; // Default port const char* host = "XXX.XXX.XX.XX"; // Target Server IP Address String ss; Serial.print("Connecting to "); Serial.println(host); // Use WiFiClient class to create TCP connections WiFiClient client; Serial.println("client created"); tft.println("client created"); client.connect(host, port); Serial.println("client connected"); tft.println("client connected"); while ( client.connected() ) { // Get acceleration data float x_values, y_values, z_values, x_angle, y_angle; x_values = lis.getAccelerationX(); y_values = lis.getAccelerationY(); z_values = lis.getAccelerationZ(); x_angle = asin(x_values); y_angle = asin(y_values); ss=String(x_angle) + " " + String(y_angle) + " " + String(z_values) + "\n" ; client.print(ss); delay(100); } Serial.println("Closing connection."); client.stop(); Serial.println("Waiting 5 seconds before restarting..."); delay(5000); }
Processing 側のプログラムは、以下です。

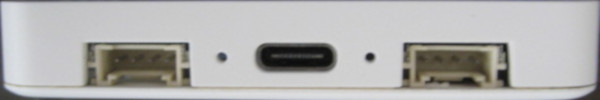

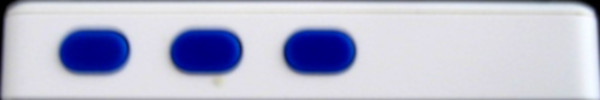

600X480X100の直方体に6面の画像を張り付けています。 画像は、プログラムと同じフォルダに別途用意する必要があります。クオリティは、悪いですが、自前で用意するのが面倒な方は、以下の画像をどうぞ。
import processing.net.*; Server server; PImage front, back, right, left, top, bottom; float PI = 3.1415; float rotationY = 0.0; void setup() { server = new Server(this, 20000); size(800, 600, P3D); front = loadImage("front.jpg"); back = loadImage("back.jpg"); right = loadImage("right.jpg"); left = loadImage("left.jpg"); top = loadImage("top.jpg"); bottom = loadImage("bottom.jpg"); textureMode(IMAGE); } //float rotationZ=0; void draw() { // TCP comm and IMU data Client c = server.available(); if (c != null) { String s = c.readStringUntil('\n'); println("server received: " + s); String[] ss = splitTokens(s); float pitch = float(ss[0]); if(Float.isNaN(pitch)) pitch = 1.57; float roll = float(ss[1]); if(Float.isNaN(roll)) roll = -1.57; float z_value = float(ss[2]); println("x=" + pitch); println("y=" + roll); println("z=" + z_value); if(z_value>0) { pitch = -PI/2-(PI/2 + pitch); //roll = -PI/2-(PI/2 + roll); } // Graphic background(0); translate(width / 2, height / 2); scale(0.4); pushMatrix(); if(mousePressed) {rotationY = map(mouseX, 0, width, -PI, PI); } rotateX(-1*pitch); rotateY(rotationY); rotateZ(-1*roll); drawWio(); popMatrix(); } } void drawWio() { beginShape(); texture(front); vertex(-300, -50, -240, 0, 0); //V1 vertex( 300, -50, -240, 600, 0); //V2 vertex( 300, -50, 240, 600, 480); //V3 vertex(-300, -50, 240, 0, 480); //V4 endShape(); beginShape(); texture(back); vertex( 300, 50, -240, 0, 0); //V1 vertex(-300, 50, -240, 600, 0); //V2 vertex(-300, 50, 240, 600, 480); //V3 vertex( 300, 50, 240, 0, 480); //V4 endShape(); beginShape(); texture(right); vertex( 300, -50, 240, 0, 0); //V1 vertex( 300, 50, 240, 0, 100); //V2 vertex( 300, 50, -240, 480, 100); //V3 vertex( 300, -50, -240, 480, 0); //V4 endShape(); beginShape(); texture(left); vertex(-300, -50, -240, 0, 0); //V1 vertex(-300, -50, 240, 480, 0); //V2 vertex(-300, 50, 240, 480, 100); //V3 vertex(-300, 50, -240, 0, 100); //V4 endShape(); beginShape(); texture(top); vertex( 300, 50, -240, 0, 0); //V1 vertex(-300, 50, -240, 600, 0); //V2 vertex(-300, -50, -240, 600, 100); //V3 vertex( 300, -50, -240, 0, 100); //V4 endShape(); beginShape(); texture(bottom); vertex(-300, -50, 240, 0, 0); //V1 vertex( 300, -50, 240, 600, 0); //V2 vertex( 300, 50, 240, 600, 100); //V3 vertex(-300, 50, 240, 0, 100); //V4 endShape(); }
実行する際は、先にProcessing の方を実行してからWioTerminalを立ち上げると行けると思います。
